电机检修工具 JTC-4631 自動循環冷氣管路清洗機 @% TWJTC-4631

电机检修工具 JTC-4631 自動循環冷氣管路清洗機 @% TWJTC-4631

• Safty machine with no sparkles.
• The air bubbles can be added to boost the cleaning effect
   and the mud inside the cooling pipe could be thoroughly removed.
• Double filters designed.
• Totally automatic machine to clean the system again and again by itself.
• Easy to find out the leakage from the liquid pressure or air pressure.
• Use with JTC-1409P cleaner and JTC-1402 universal adapter set to
   achieve high efficiency.
• patented.

Why should to clean your Car A/C System ?
1.The compressor is wedged by something. There are some bits of aluminum and
  dirt in the air condenser or system. When the tube of system becomes narrow,
  A/C system can neither work smoothly nor blow cold enough.
  The voice of compressor is getting loud and maybe cause the system to waste
  more oil due to the overload

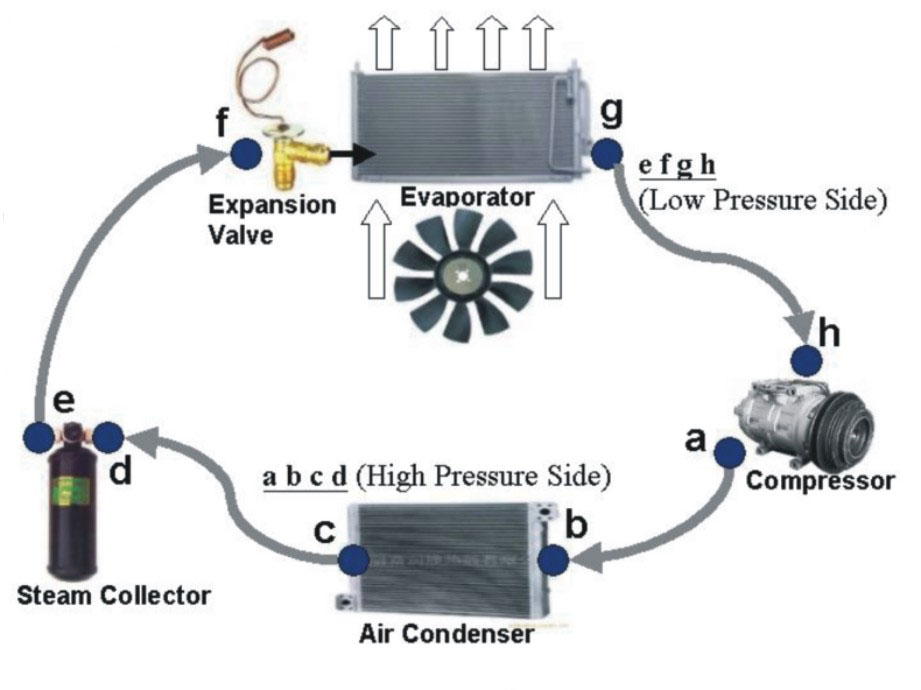

Car A/C Cycle System Model:



Cleaning Suggestion:
1.To dismantle points of a、d、e、h to separate the model into
 2 parts.--- one high-pressure side a b c d and the other low-
 pressure side e f g h.
2.Firstly, clean low-pressure side e f g h, when A/C System
 Flush Machine functions from e(connect with cleaning agent outlet)
 to h (connect with cleaning agent collecting point).
 Not only make circulation again and again, but also stop
 function suddenly to let the cleaning agent be soaked in
 the tube for a while.
☆When cleaning the low-pressure side, please note that the
 air pressure needs to be limited between 2 ~ 3 kgs.
Because of the expansion valve will be closed if the air
 pressure is too high .
------It also can be exchanged to connect tube of e and h
points to do the cleaning.

3.Then, clean high-pressure side a b c d, when A/C System
 Flush Machine functions from a ( connect with cleaning agent
 outlet ) to d ( connect with cleaning agent collecting point ).
 Not only make circulation again and again, but also stop function
 suddenly to let the cleaning agent be soaked in the tube for a while.
☆When cleaning the high-pressure side, the air pressure is not limited.
------It also can be exchanged to connect tube of a and d points
 to do the cleaning.

***If the flow of cleaning agent is not smooth in any tube,
  possibly have to dismantle some points to separate more parts.

***Different cars have different cleaning ways.

电机检修工具jtc-4631自動循環冷氣管路清洗機twjtc-4631 %

电机检修工具jtc-4631自動循環冷氣管路清洗機twjtc-4631 %

•安全无火花机。

气泡可以添加到提高清洗效果

在冷却管的泥浆可以彻底清除。

•双滤波器的设计。

•完全自动清洗机系统一次又一次的。

•容易找出泄漏的液体压力或空气压力。

使用jtc-1409p清洁jtc-1402通用适配器设置

实现高效率。

专利

为什么要清洁你的汽车空调系统

1压缩机是楔形的东西。位和

在空气冷凝器污垢或系统。系统管变窄

A / C系统不能工作的顺利进行也不吹冷。

压缩机的声音越来越响亮可能导致系统的废物

由于超载

汽车空调循环系统模型

清洁的建议

1拆卸模型转化为一个DEH

2部分。---一个高压A B C D和其他低

压力侧E F G

2首先干净的低压侧E F G HA / C系统

抽水的功能从E清洁剂的出口连接

H清洁剂的收集点连接

不仅使周而复始的循环也停止

清洁剂浸泡在突然的功能

一段

清洗低压侧时,请注意

空气压力需要有限的2 ~ 3公斤之间。

由于膨胀阀将关闭,如果空气

压力太高

------可以交换连接的E和H

做清洁

3然后清洁的高压侧A B C DA / C系统

抽水的功能从一个(与清洗剂连接

出口D清洁剂的收集点连接

不仅使周而复始的循环停止功能

突然,清洁剂中浸泡一会

清洗高压侧时,空气压力不受限制

------可以交换连接A和D

做清洁

*如果流动的清洗剂是不光滑的任何管,

可能会有更多部分拆除分离

* * *不同的汽车有不同的清洁方法
